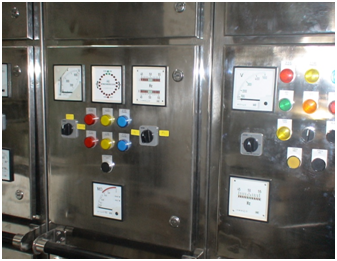

Our MAIN SWITCH BOARDs(MSBs) are designed to meet requirement of operation at sea meeting the class requirements for Marine applications. The MSB can be offered in many variations with
- Auto/Manual Synchronisation of multiple Gensets & Sore Supplies
- Load dependent start/stop Facilities for efficient system operations.
- Load Sharing and Load Management with preferential trip systems
- With or without facility for integration with IPMS /PMS systems.
| 1 | Enclosure | 2MM Wall/Floor Mounted; IP52 Unless Mentioned Otherwise.MS/SS316/Aluminium |
| 2 | Working Voltage | 415V/380V-3/4 Wire 50/60Hz; Control 230/110VAC For Pumps/24VDC For PLC/PLR/Logica Relays |
| 3 | Controlled Elements | Plcs OR Proprietory Control Gear With Hardwares From Ni/Other Reputed Manufactrers |
| 4 | Switchgear Items | Schnieder/Siemens/Abb/Ge As Reuired |
| 5 | Operating Conditions | At Shore/Sailing With Combination Of Shore And Onboard Gensets With/Without Load Dependent Start/Stop & Auto/Manual Synchronisation With/Without Full IPMS Compatibility. |
| 6 | Controller For Logic | Plcs/NI Platform Based Hardware & Software |
| 7 | Facilities & Utilities Inbuilt Into The System: | Compartmentalised & With Convenient Transport Sections Automatic Start/Stop/Synchronisation/Load Sharing Etc When Required. With Inbuilt Genset And Bus Protection All Feeders Protected Against Prospective Short Circuit Current Metering & Indications For Alarms On HMI Or Indicating Lamps Or Anunciators As Required By Clients. Charger For Starting Battery Can Be Provided. |
| 8 | Communication | Optional RS485 Between The Panel & Control Stations |
| 9 | Controller Parameters | Provision For Integration With IPMS/SCADA |
