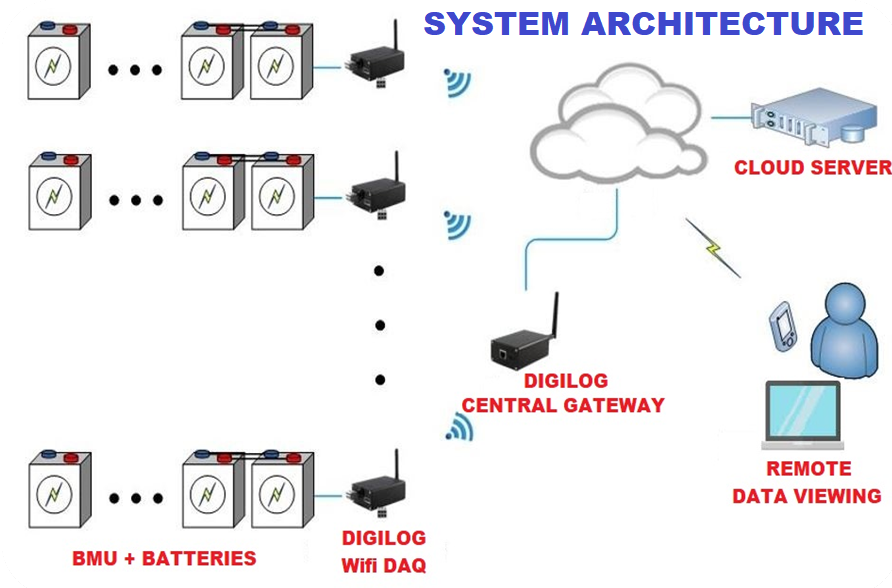

KEY COMPONENTS OF THE BATTERY MONITORING SYSTEM

1) Wi-Fi DAQ: (Hardware)

• Measures the voltage and temperature of individual batteries. Can be programmed to measure secondary parameters like Impedance, Internal Resistance, SOC, SOH etc based on algorithms provided by the customer.
• A total of 4 batteries can be connected to each Wi-Fi DAQ.
• The Wi-Fi DAQ units connect to the Central Gateway via Modbus on either RS485 or TCP (Ethernet or Wi-Fi)

2) Central Gateway:

• Collects and stores the data received from the Wi-Fi DAQ units.
• Manages communication with the PC software.
• Sends data to the cloud storage over the internet.

3) Current Sensing Module:

• Can measure the current of individual batteries or a string of batteries.

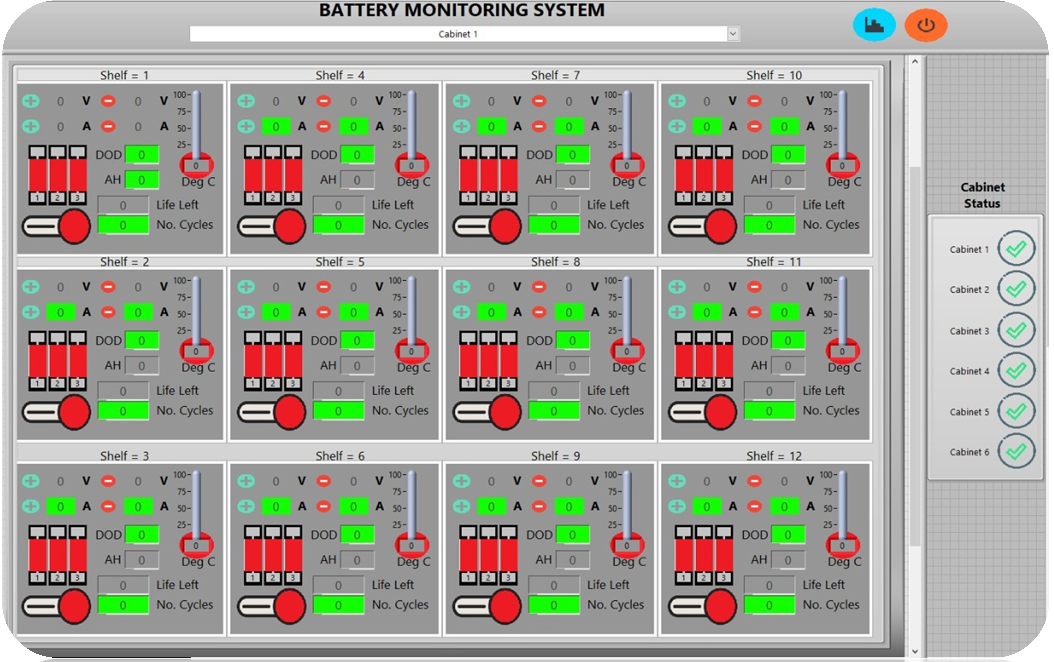

4) BMS Software:

• PC software to view all the real-time parameters, historic trends and other customizable analysis as per customers requirements.
